Forces in a Climb

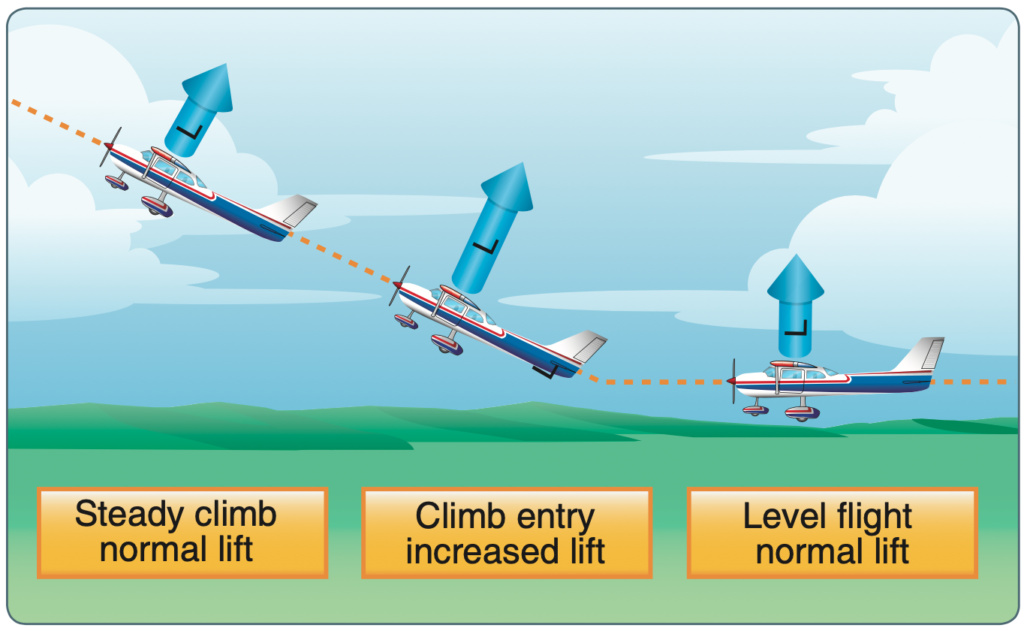

For all practical purposes, the wing’s lift in a steady state normal climb is the same as it is in a steady level flight at the same airspeed. Although the aircraft’s flight path changed when the climb was established, the angle of attack of the wing with respect to the inclined flight path reverts to practically the same values, as does the lift. During the transition from straight-and-level flight to a climb, a change in lift occurs when back elevator pressure is first applied. Raising the aircraft’s nose increases the angle of attack and momentarily increases the lift. Lift at this moment is now greater than weight and the aircraft starts to climb. After the flight path is stabilized in the climb, the angle of attack and lift again revert to approximately the same level flight values.

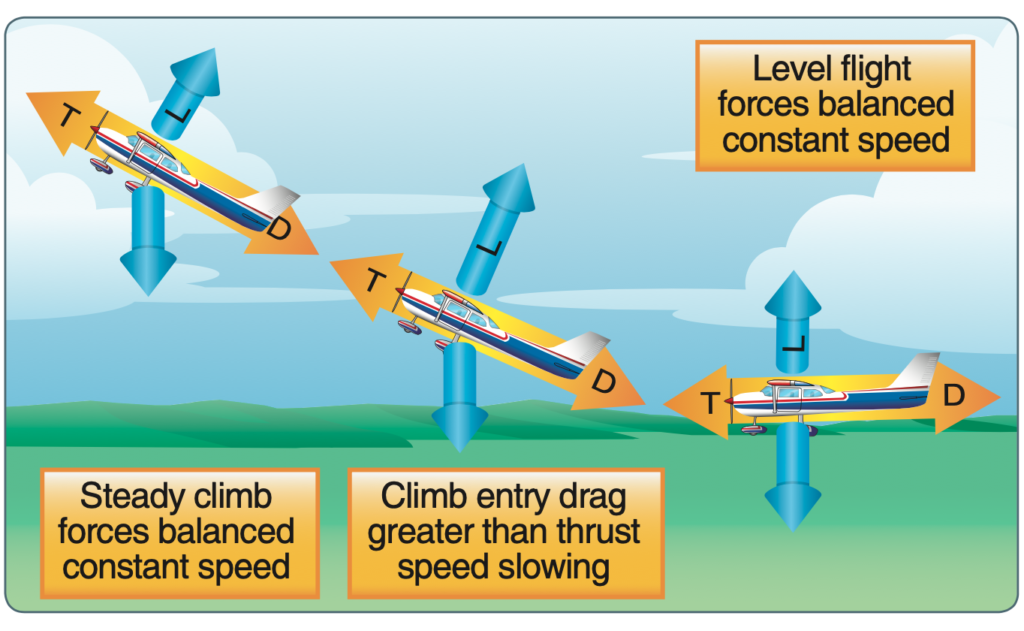

If the climb is entered with no change in power setting, the airspeed gradually diminishes because the thrust required to maintain a given airspeed in level flight is insufficient to maintain the same airspeed in a climb. When the flight path is inclined upward, a component of the aircraft’s weight acts in the same direction as, and parallel to, the total drag of the aircraft, thereby increasing the total effective drag. Consequently, the total effective drag is greater than the total effective thrust, and the airspeed decreases. The reduction in airspeed gradually results in a corresponding decrease in drag until the total drag (including the component of weight acting in the same direction) equals the thrust. Due to momentum, the change in airspeed is gradual, varying considerably with differences in aircraft size, weight, total drag, and other factors. Since the aircraft’s weight is acting not only downward but rearward with drag while in a climb, additional power is required to maintain the same airspeed as in level flight.
